Dorc Vitrektomi Cihazı

Dorc Vitrektomi Cihazı Associate 2500

TECHNOLOGY CREATED BY VISION

Dorcvicrektomi

Advanced Dual System, Phaco and Vitrectomy
Twin Pump System, Peristaltic and Venturi
Bimanual Cool Phaco / M.I.C.S.
High Speed Vitrectomy, 20, 23 and 25 gauge compatible

Dorcvicrektomi

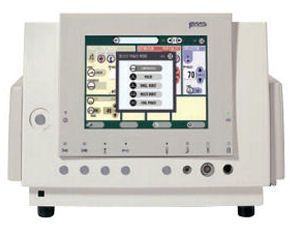

ASSOCIATE® 2500 COMPACT SYSTEM

Phaco system with cool phaco technology for M.I.C.S. micro incision cataract surgery

Advanced features :

  • Peristaltic pump.
  • Phaco dual mode with simultaneous control of aspiration and phaco.
  • Cool phaco technology.
  • 2.2 mm. Micro phaco.
  • Pulse, single/multiple burst mode.
  • 40 kHz phaco technology with continuous auto-tuning.

Dorcvicrektomi

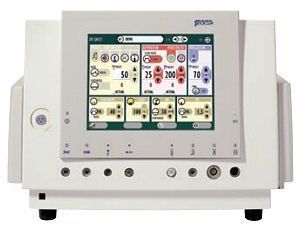

ASSOCIATE® 2500 DUAL SYSTEM

Twin pump phaco and vitrectomy system
Includes all new phaco technologies!

Advanced features:

  • Dual system, phaco and vitrectomy.
  • Twin pump system, peristaltic and venturi.
  • Bimanual cool phaco / M.I.C.S.
  • High speed vitrectomy, 20, 23 and 25 gauge compatible.
  • Triple port illumination.

Dorcvicrektomi

Dorcvicrektomi

Dorcvicrektomi Dorcvicrektomi

Dorcvicrektomi

  • Cool phaco for M.I.C.S. Micro Incision Cataract Surgery.
  • Phaco dual mode with Simultaneous control of Aspiration and phaco.
  • 40 kHz phaco technology with Continuous auto-tuning.
  • Emulsification and phaco fragmentation.
  • Peristaltic pump:
  1. high vacuum occlusion technology for advanced capsular protection.
  • Venturi pump:
  1. selectable vacuum rise time.
Dorcvicrektomi

MULTIFUNCTIONAL FOOTSWITCH

  • Dual linear control of aspiration and phaco/vitrectomy.
  • dual phaco control.
  • Programmable surgical process steps.
Dorcvicrektomi

HIGH VACUUM SENSOR CARTRIDGE

  • Integrated microprocessor for real time intraocular vacuum and flow control.
  • For peristaltic and venturi pump.
  • Optimal sterile barrier design.
Dorcvicrektomi

Dorcvicrektomi TRIPLE PORT LIGHT SOURCE

  • SIMULTANEOUS USE OF THREE ILLUMINATION PORTS.
  • LIGHTSOURCE WITH 150 WATT HALOGEN BULB AND AUTOMATIC SWITCH TO SECOND LAMP WHEN FIRST LAMP FAILS.
  • INTEGRATED HEAT PROTECTION FILTER FOR COLD LIGHT AND UV/IR FILTERING.
  • INTEGRATED HIGH INTENSITY LENS FOCUS SYSTEM FOR IMPROVED LIGHT OUTPUT.

DIATHERMY

  • ENDO AND EXO DIATHERMY.
  • FIXED AND LINEAR DIATHERMY CONTROL.

VISCOUS FLUID EXTRACTION

  • LINEAR CONTROLLED VISCOUS FLUID EXTRACTION.
  • ACOUSTIC SIGNAL INDICATES VACUUM LEVEL.

2500 HIGH SPEED VITRECTOMY

  • 20, 23 AND 25 GAUGE COMPATIBLE.
  • CUTTING FREQUENCY 100-2500 CUTS/MIN.
  • PNEUMATIC & ELECTRIC DRIVE FOR PNEUMATIC AND ELECTRIC VITRECTOMES.
  • VITRECTOMY DUAL MODE.
  • SINGLE CUT, FIXED AND LINEAR CUTTING CONTROL
  • ASPIRATION BY VENTURI OR PERISTALTIC PUMP.

IRRIGATION / ASPIRATION

PERISTALTIC ASPIRATION SYSTEM WITH INDEPENDENT SETTINGS FOR:

  • ASPIRATION FLOW: 1-50 CC/MIN.
  • VACUUM: 10-500 mmHg.

VENTURI ASPIRATION SYSTEM FOR QUICK, EFFICIENT AND LINEAR VACUUM.

  • VACUUM: 10-500 mmHg.
  • SELECTABLE VACUUM RISE-TIME.

VISCOUS FLUID INJECTION

  • PNEUMATIC DRIVE FOR VISCOUS FLUID INJECTION.
  • FIXED OR LINEAR CONTROLLED INJECTION.
  • PRESSURE RANGE 0.5 TO 5.0 BAR.

MEMORY SETTING

  • USER-FRIENDLY MEMORY SETTING.
  • INDIVIDUAL PROGRAMMABLE MEMORY
  • SETTINGS FOR ALL PARAMETERS.

WIRELESS REMOTE CONTROL

  • FOR OPTIMAL USER FLEXIBILITY.

AIR

  • ANTERIOR AND POSTERIOR GLOBAL PRESSURE CONTROL.
  • AIR TAMPONADE MODE.
  • AIR-FLUID EXCHANGE.
  • PRESSURE RANGE: 5-120 mmHg.

PHACO

  • PHACO DUAL MODE WITH SIMULTANEOUS CONTROL OF ASPIRATION AND PHACO.
  • COOL PHACO TECHNOLOGY.
  • PULSE, SINGLE/MULTIPLE BURST MODE.
  • 40 KHZ PHACO TECHNOLOGY WITH CONTINUOUS AUTO-TUNING.
